Technical Specifications
Nichicon UHE1A152MHD6 technical specifications.
General
| Capacitance | 1.5mF |
| Package/Case | Radial |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.19% |
| ESR (Equivalent Series Resistance) | 160mR |
| Impedance | 49mR |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Leakage Current | 150uA |
| Length | 15mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Ripple Current | 1.45A |
| RoHS Compliant | Yes |
| Series | UHE |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UHE1A152MHD6 Datasheet
Download the complete datasheet for Nichicon UHE1A152MHD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

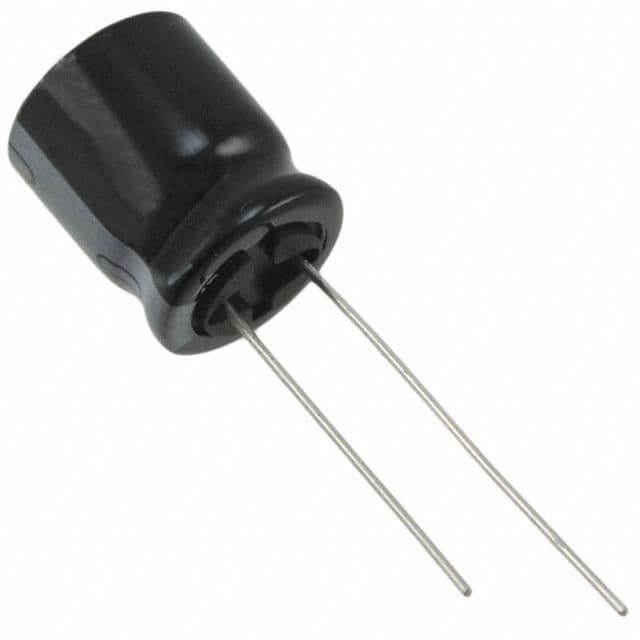

Product Images
