Standard aluminum electrolytic capacitor with 470µF capacitance and 63V DC voltage rating. Features 20% tolerance, 420mΩ ESR, and 100mΩ impedance. Rated for 105°C maximum operating temperature and 10000 hours of life. Ripple current capability is 1.01A. Radial package with 5mm lead pitch and 0.8mm lead diameter.
PackageRadial
Capacitance470uF
Voltage Rating63V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UHE1J471MHD technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Diameter | 12.5mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.09% |
| ESR (Equivalent Series Resistance) | 420mR |
| Features | General Purpose |
| Height | 31.5mm |
| Height - Seated (Max) | 0.492inch |
| Impedance | 100mR |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 296.1uA |
| Length | 31.5mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | 10000°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.01A |
| RoHS Compliant | Yes |
| Series | HE |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UHE1J471MHD Datasheet
Download the complete datasheet for Nichicon UHE1J471MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

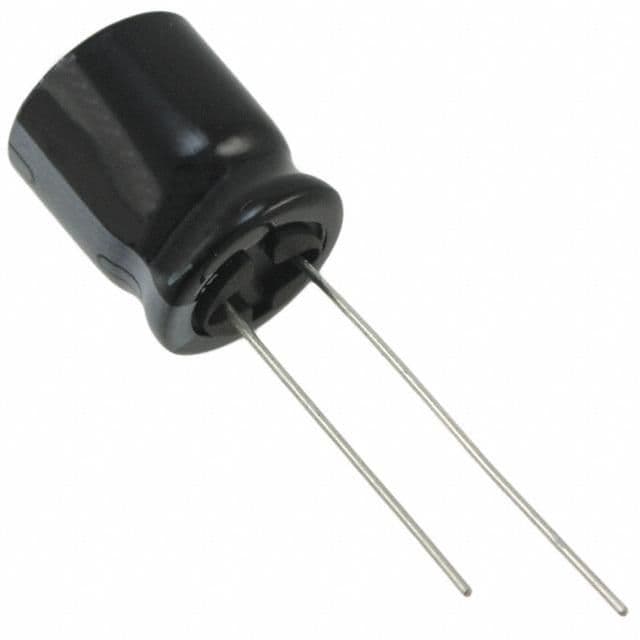

Product Images
