Technical Specifications
Nichicon UKL1E101KPDANATD technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| Height | 11.5mm |
| Height - Seated (Max) | 0.492inch |
| Lead Pitch | 3.5mm |
| Length | 11mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Ripple Current | 280mA |
| RoHS Compliant | Yes |
| Series | UKL |
| Termination | Radial |
| Tolerance | 10% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UKL1E101KPDANATD Datasheet
Download the complete datasheet for Nichicon UKL1E101KPDANATD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

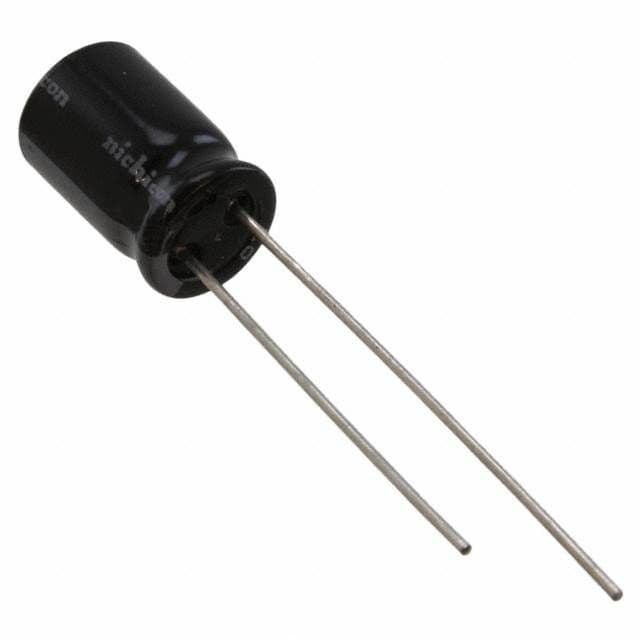

Product Images
