Technical Specifications
Nichicon UKL2A151MHD technical specifications.
General
| Capacitance | 150uF |
| Package/Case | Radial |
| Diameter | 12.5mm |
| Height | 25mm |
| Lead Pitch | 5mm |
| Leakage Current | 30uA |
| Length | 25mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 470mA |
| RoHS Compliant | Yes |
| Series | UKL |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UKL2A151MHD Datasheet
Download the complete datasheet for Nichicon UKL2A151MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

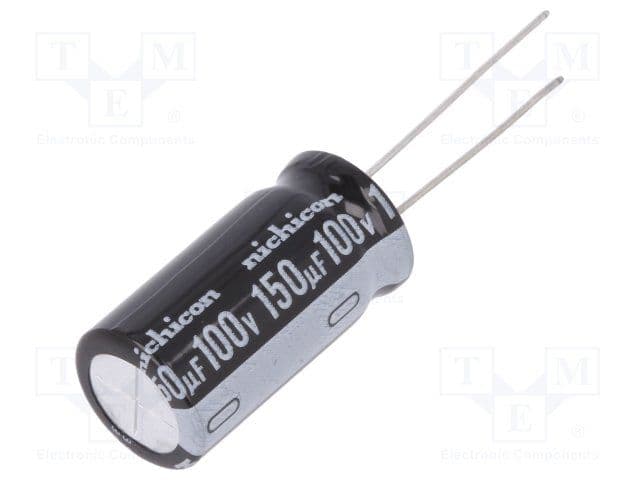

Product Images
