PackageRadial
Voltage400V
Capacitance2.2uF
Voltage Rating400V
Quick Jump:
Technical Specifications
Nichicon ULD2G2R2MPD technical specifications.
General
Capacitance
2.2uF
Package/Case
Radial
Construction
RADIAL
Diameter
8mm
Height
11.5mm
Height - Seated (Max)
0.531inch
Lead Diameter
0.6mm
Lead Pitch
0.138inch
Leakage Current
128uA
Life (Hours)
10000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
800
Packaging
Bulk
Ripple Current
40mA
RoHS Compliant
Yes
Series
ULD
Termination
Through Hole
Tolerance
20%
Voltage
400V
Voltage Rating
400V
Compliance
RoHS
Compliant
Datasheet
Nichicon ULD2G2R2MPD Datasheet
Download the complete datasheet for Nichicon ULD2G2R2MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

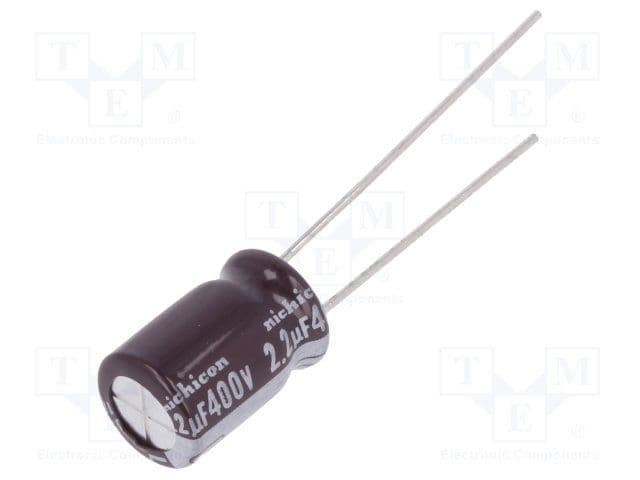

Product Images
