The ULD2G4R7MPD is a 4.7uF aluminum electrolytic capacitor with a voltage rating of 400V. It has a radial package with a diameter of 10mm and a height of 12.5mm. The capacitor is designed for through-hole mounting and has a maximum operating temperature of 105°C. It is RoHS compliant and has a tolerance of 20%. The capacitor has a leakage current of 228uA and a ripple current of 61mA.
PackageRadial
Voltage400V
Capacitance4.7uF
Voltage Rating400V
Quick Jump:
Technical Specifications
Nichicon ULD2G4R7MPD technical specifications.
General
| Capacitance | 4.7uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Height | 12.5mm |
| Height - Seated (Max) | 0.571inch |
| Lead Diameter | 0.6mm |
| Lead Pitch | 0.197inch |
| Leakage Current | 228uA |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 600 |
| Packaging | Bulk |
| Ripple Current | 61mA |
| RoHS Compliant | Yes |
| Series | ULD |
| Termination | Through Hole |
| Tolerance | 20% |
| Voltage | 400V |
| Voltage Rating | 400V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon ULD2G4R7MPD Datasheet
Download the complete datasheet for Nichicon ULD2G4R7MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

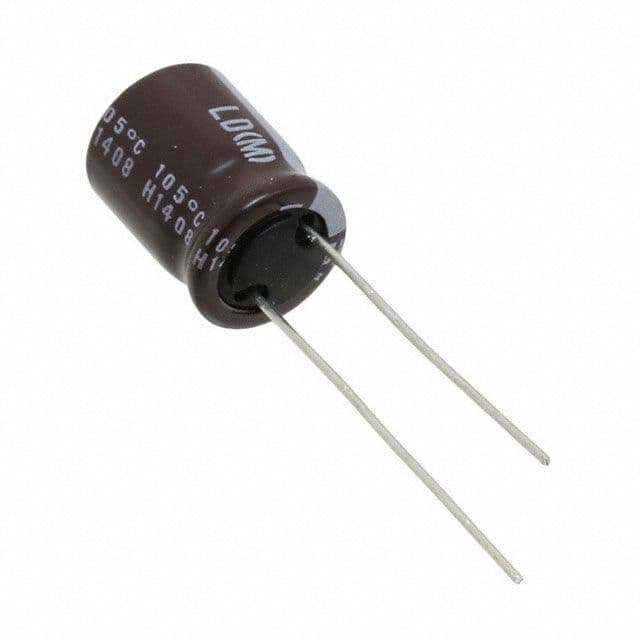

Product Images
