Technical Specifications
Nichicon ULD2W220MHD6 technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 16mm |
| Height | 20mm |
| Height - Seated (Max) | 0.866inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 0.295inch |
| Leakage Current | 1.03mA |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 150 |
| Packaging | Bulk |
| Ripple Current | 292mA |
| RoHS Compliant | Yes |
| Series | ULD |
| Termination | Through Hole |
| Tolerance | 20% |
| Voltage | 450V |
| Voltage Rating | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon ULD2W220MHD6 Datasheet
Download the complete datasheet for Nichicon ULD2W220MHD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

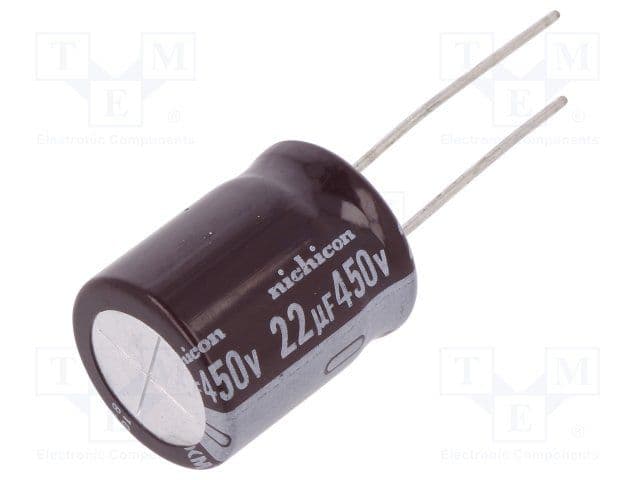

Product Images
