Nichicon
ULD2W330MHD6
Nichicon ULD 33uF 450V 20% 10,000hr Through Hole Aluminum Electrolytic Capacitor
This Nichicon ULD series aluminum electrolytic capacitor features a capacitance of 33uF, a voltage rating of 450V, and a tolerance of 20%. It has a maximum operating temperature of 105°C and a minimum operating temperature of -25°C. The capacitor is designed for through hole mounting and has a lead diameter of 0.8mm and a lead pitch of 0.295inch. It is RoHS compliant and has a life expectancy of 10,000 hours.
PackageRadial
Voltage450V
Capacitance33uF
Voltage Rating450V
Quick Jump:
Technical Specifications
Nichicon ULD2W330MHD6 technical specifications.
General
| Capacitance | 33uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 16mm |
| Height | 25mm |
| Height - Seated (Max) | 0.866inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 0.295inch |
| Leakage Current | 1.525mA |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 150 |
| Packaging | Bulk |
| Ripple Current | 312mA |
| RoHS Compliant | Yes |
| Series | ULD |
| Termination | Through Hole |
| Tolerance | 20% |
| Voltage | 450V |
| Voltage Rating | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon ULD2W330MHD6 Datasheet
Download the complete datasheet for Nichicon ULD2W330MHD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

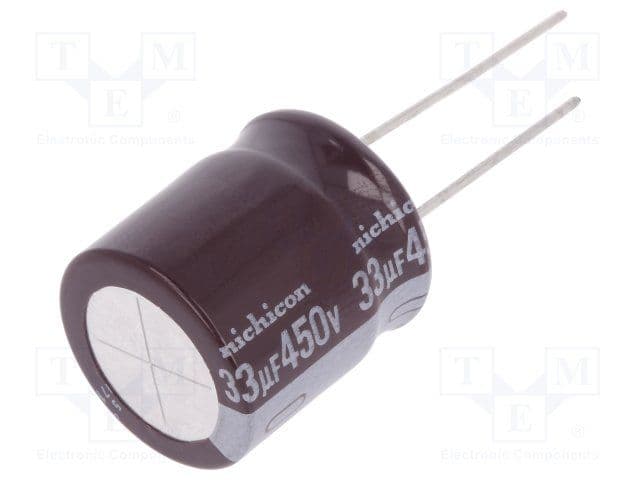

Product Images
