Nichicon
ULH2D220MNL1GS
Cap Aluminum Lytic 22uF 200V 20% (10 X 13.5mm) SMD 65mA 4000h 125°C Automotive T/R
PackageSMD/SMT
Voltage200V
Capacitance22uF
Voltage Rating200V
Quick Jump:
Technical Specifications
Nichicon ULH2D220MNL1GS technical specifications.
General
Capacitance
22uF
Package/Case
SMD/SMT
Diameter
10mm
Height
13.5mm
Lead Pitch
4.5mm
Leakage Current
276mA
Length
13.5mm
Life (Hours)
4000Hour
Material
Aluminium
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
400
Packaging
Tape and Reel
Ripple Current
65mA
RoHS Compliant
Yes
Series
ULH
Termination
SMD/SMT
Tolerance
20%
Voltage
200V
Voltage Rating
200V
DC Rated Voltage
200V
Compliance
RoHS
Compliant
Datasheet
Nichicon ULH2D220MNL1GS Datasheet
Download the complete datasheet for Nichicon ULH2D220MNL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

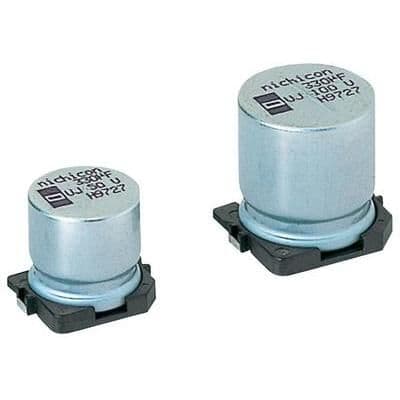

Product Images
