Nichicon
ULH2E7R5MNL1GS
Cap Aluminum Lytic 7.5uF 250V 20% (8 X 10mm) SMD 30mA 4000h 125°C Automotive T/R
PackageSMD/SMT
Voltage250V
Capacitance7.5uF
Voltage Rating250V
Quick Jump:
Technical Specifications
Nichicon ULH2E7R5MNL1GS technical specifications.
General
Capacitance
7.5uF
Package/Case
SMD/SMT
Diameter
8mm
Height
10mm
Height - Seated (Max)
0.433inch
Lead Pitch
3.1mm
Leakage Current
175mA
Length
10mm
Life (Hours)
4000Hour
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Ripple Current
30mA
RoHS Compliant
Yes
Series
ULH
Termination
SMD/SMT
Tolerance
20%
Voltage
250V
Voltage Rating
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Nichicon ULH2E7R5MNL1GS Datasheet
Download the complete datasheet for Nichicon ULH2E7R5MNL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

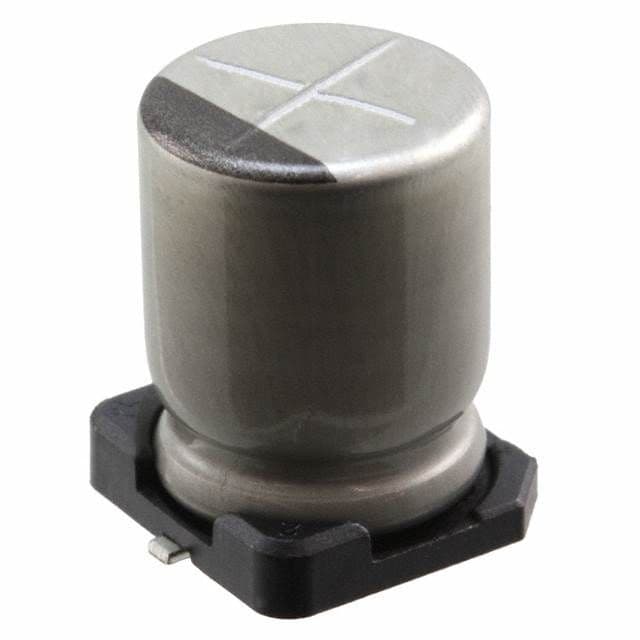

Product Images
