Nichicon
ULV2C220MNL1GS
Cap Aluminum Lytic 22uF 160V 20% (10 X 10mm) SMD 65mA 10000h 105°C Automotive T/R
PackageSMD/SMT
Voltage160V
Capacitance22uF
Voltage Rating160V
Quick Jump:
Technical Specifications
Nichicon ULV2C220MNL1GS technical specifications.
General
Capacitance
22uF
Package/Case
SMD/SMT
Diameter
10mm
Height
10mm
Lead Free
Lead Free
Lead Pitch
4.5mm
Leakage Current
240.8mA
Length
10mm
Life (Hours)
10000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Ripple Current
65mA
RoHS Compliant
Yes
Series
ULV
Termination
SMD/SMT
Tolerance
20%
Voltage
160V
Voltage Rating
160V
DC Rated Voltage
160V
Compliance
RoHS
Compliant
Datasheet
Nichicon ULV2C220MNL1GS Datasheet
Download the complete datasheet for Nichicon ULV2C220MNL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

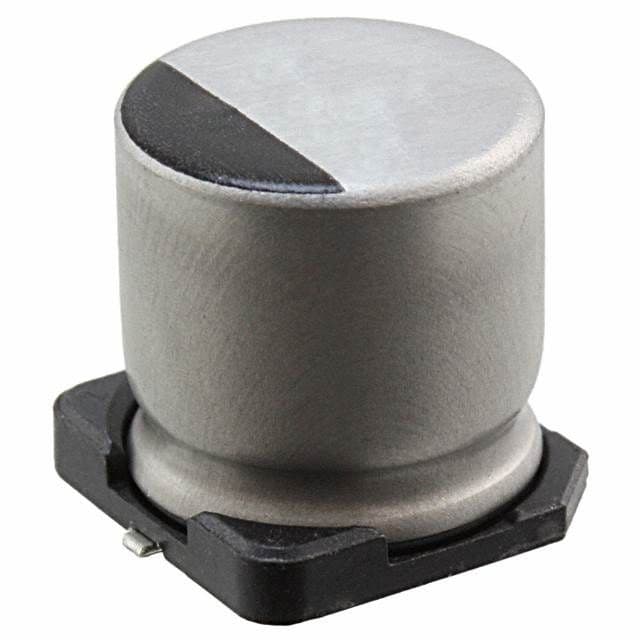

Product Images
