Nichicon
UMV1V220MFD1TP
Cap Aluminum Lytic 22uF 35V 20% (6.3 X 5mm) Radial 2.5mm 42mA 5000h 105°C Ammo
PackageRadial
Capacitance22uF
Voltage Rating35V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UMV1V220MFD1TP technical specifications.
General
Capacitance
22uF
Package/Case
Radial
Diameter
5mm
Dielectric Material
Aluminium
Height
5mm
Height - Seated (Max)
0.236inch
Lead Pitch
0.098inch
Length
11mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
1
Packaging
Tape and Reel
Ripple Current
42mA
RoHS Compliant
Yes
Series
MV
Termination
Radial
Tolerance
20%
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UMV1V220MFD1TP Datasheet
Download the complete datasheet for Nichicon UMV1V220MFD1TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

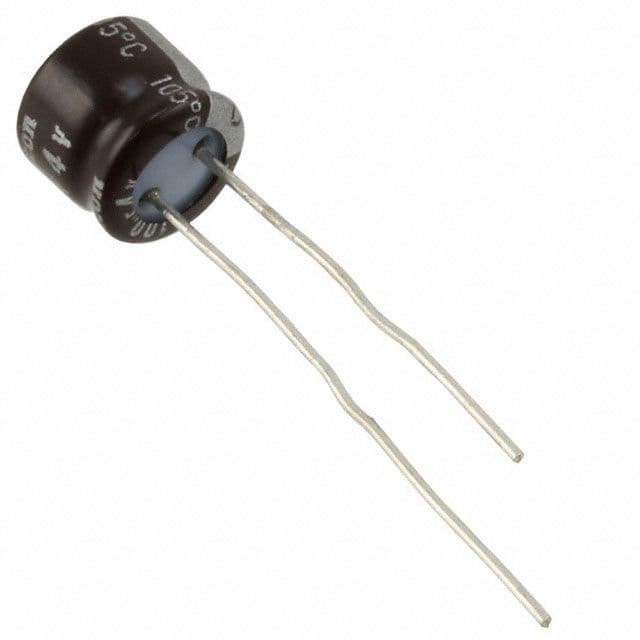

Product Images
