Standard aluminum electrolytic capacitor with 220µF capacitance and 25V voltage rating. Features 20% tolerance, 435mA ripple current, and 5000 hours of life at 105°C. Radial package measures 10mm in diameter and 12.5mm in height with a 5mm lead pitch. Low impedance of 210mΩ and leakage current of 165µA.
PackageRadial
Capacitance220uF
Voltage Rating25V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPJ1E221MPD6 technical specifications.
General
Capacitance
220uF
Package/Case
Radial
Diameter
10mm
Dissipation Factor
0.14%
Height
12.5mm
Height - Seated (Max)
0.551inch
Impedance
210mR
Lead Pitch
5mm
Leakage Current
165uA
Length
12.5mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
435mA
RoHS Compliant
Yes
Series
PJ
Termination
Radial
Tolerance
20%
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPJ1E221MPD6 Datasheet
Download the complete datasheet for Nichicon UPJ1E221MPD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

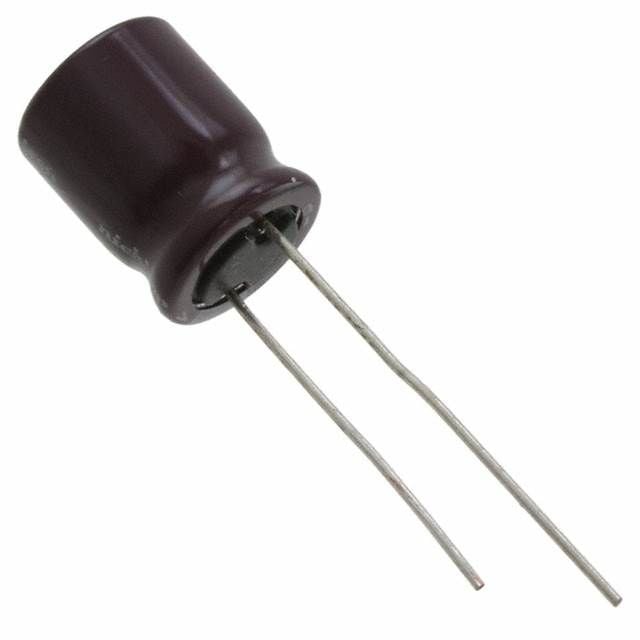

Product Images
