Nichicon
UPJ1E391MHD6TO
Cap Aluminum Lytic 390uF 25V 20% (12.5 X 15mm) Radial 5mm 720mA 5000h 105°C Ammo
PackageRadial
Capacitance390uF
Voltage Rating25V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPJ1E391MHD6TO technical specifications.
General
Capacitance
390uF
Package/Case
Radial
Impedance
130mR
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Packaging
Cut Tape
RoHS Compliant
Yes
Series
UPJ
Tolerance
20%
Voltage Rating
25V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPJ1E391MHD6TO Datasheet
Download the complete datasheet for Nichicon UPJ1E391MHD6TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

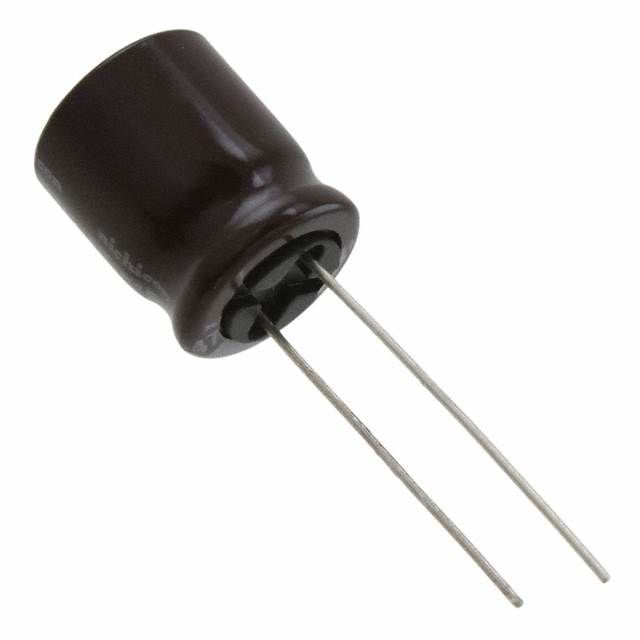

Product Images
