Nichicon
UPJ1H181MHD6TO
Cap Aluminum Lytic 180uF 50V 20% (12.5 X 15mm) Radial 5mm 605mA 5000h 105°C Ammo
PackageRadial
Capacitance180uF
Voltage Rating50V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPJ1H181MHD6TO technical specifications.
General
Capacitance
180uF
Package/Case
Radial
Height - Seated (Max)
0.65inch
Impedance
120mR
Lead Pitch
0.197inch
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
1
Packaging
Tape and Reel
Ripple Current
605mA
RoHS Compliant
Yes
Series
PJ
Termination
Radial
Tolerance
20%
Voltage Rating
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPJ1H181MHD6TO Datasheet
Download the complete datasheet for Nichicon UPJ1H181MHD6TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

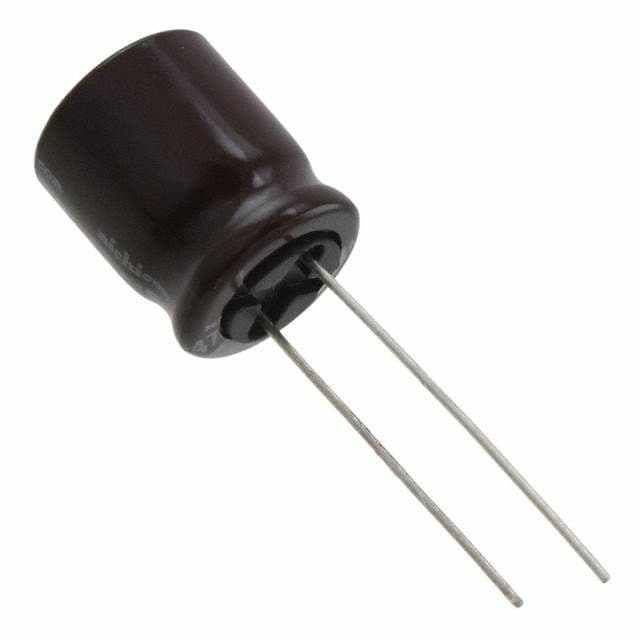

Product Images
