Nichicon
UPJ1H331MHD6TN
Cap Aluminum Lytic 330uF 50V 20% (16 X 15mm) Radial 7.5mm 925mA 5000h 105°C Ammo
PackageRadial
Capacitance330uF
Voltage Rating50V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPJ1H331MHD6TN technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Diameter
16mm
Dielectric Material
Aluminium
Height
15mm
Height - Seated (Max)
0.65inch
Impedance
78mR
Lead Free
Lead Free
Lead Pitch
0.295inch
Length
15mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
1
Packaging
Tape and Reel
Ripple Current
925mA
RoHS Compliant
Yes
Series
PJ
Termination
Radial
Tolerance
20%
Voltage Rating
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPJ1H331MHD6TN Datasheet
Download the complete datasheet for Nichicon UPJ1H331MHD6TN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

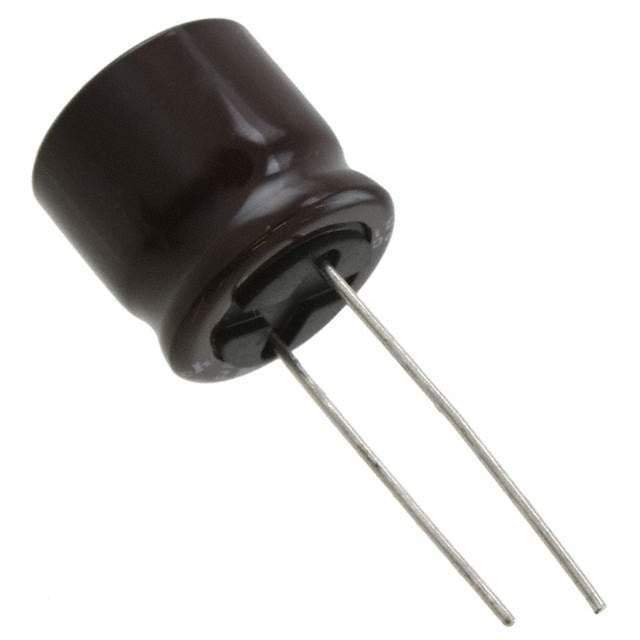

Product Images
