Nichicon
UPM1C152MHD6
Cap Aluminum Lytic 1500uF 16V 20% (18 X 15mm) Radial 7.5mm 1400mA 5000h 105°C Bulk
PackageRadial
Capacitance1.5mF
Voltage Rating16V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM1C152MHD6 technical specifications.
General
Capacitance
1.5mF
Package/Case
Radial
Diameter
18mm
Height
15mm
Impedance
41mR
Lead Pitch
7.5mm
Leakage Current
720uA
Length
15mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Ripple Current
1.4A
RoHS Compliant
Yes
Series
UPM
Termination
Radial
Tolerance
20%
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM1C152MHD6 Datasheet
Download the complete datasheet for Nichicon UPM1C152MHD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

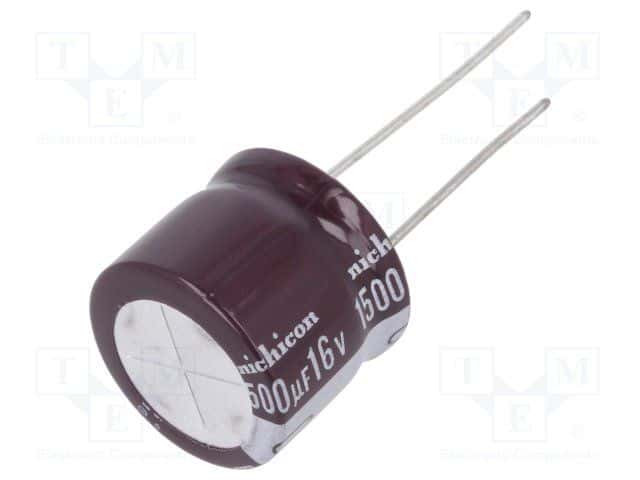

Product Images
