Aluminum electrolytic capacitor with 3.9mF capacitance and 16V DC rating. Features 20% tolerance, 2.22A ripple current, and 22mΩ impedance. Operates from -55°C to 105°C with a 5000-hour lifespan. Radial package measures 16mm diameter by 31.5mm height with a 7.5mm lead pitch.
PackageRadial
Capacitance3.9mF
Voltage Rating16V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM1C392MHD technical specifications.
General
Capacitance
3.9mF
Package/Case
Radial
Diameter
16mm
Features
General Purpose
Height
31.5mm
Height - Seated (Max)
1.319inch
Impedance
22mR
Lead Pitch
7.5mm
Leakage Current
1.872mA
Length
31.5mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Ripple Current
2.22A
RoHS Compliant
Yes
Series
PM
Termination
Radial
Tolerance
20%
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM1C392MHD Datasheet
Download the complete datasheet for Nichicon UPM1C392MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

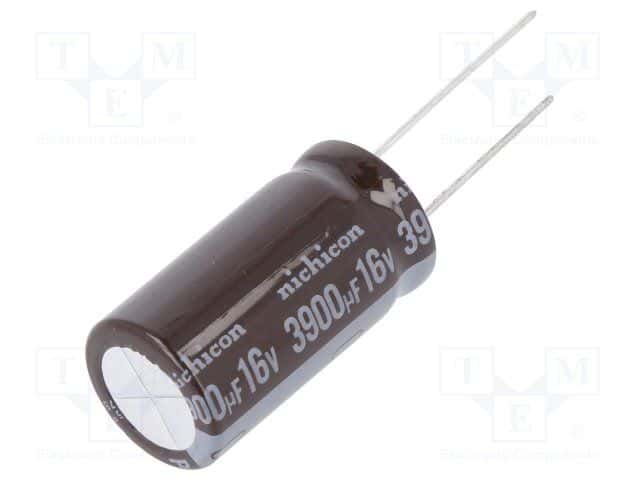

Product Images
