Radial aluminum electrolytic capacitor, 1000µF capacitance, 25V DC rated voltage, and 20% tolerance. Features a 1.43A ripple current, 36mΩ impedance, and 750µA leakage current. Operates from -55°C to 105°C with a 5000-hour life rating. Through-hole mounting with radial leads, 5mm lead pitch, and 0.6mm lead diameter. RoHS compliant.
PackageRadial
Voltage25V
Capacitance1mF
Voltage Rating25V
Quick Jump:
Technical Specifications
Nichicon UPM1E102MHD technical specifications.
General
Capacitance
1mF
Package/Case
Radial
Construction
RADIAL
Diameter
12.5mm
Dielectric Material
Aluminium
Dissipation Factor
0.14%
Height
25mm
Height - Seated (Max)
1.063inch
Impedance
36mR
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
5mm
Leakage Current
750uA
Length
25mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
1.43A
RoHS Compliant
Yes
Series
PM
Termination
Radial
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM1E102MHD Datasheet
Download the complete datasheet for Nichicon UPM1E102MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

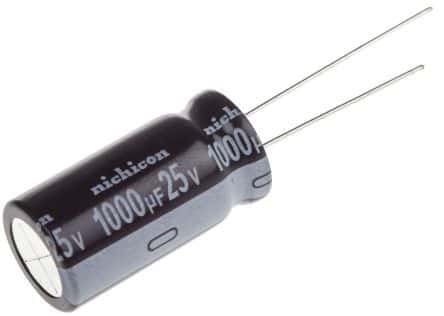

Product Images
