Nichicon
UPM1J121MHD6TO
Cap Aluminum Lytic 120uF 63V 20% (12.5 X 15mm) Radial 5mm 510mA 5000h 105°C Ammo
PackageRadial
Capacitance120uF
Voltage Rating63V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM1J121MHD6TO technical specifications.
General
Capacitance
120uF
Package/Case
Radial
Diameter
12.5mm
Impedance
120mR
Lead Pitch
5mm
Length
15mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
500
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
UPM
Termination
Radial
Tolerance
20%
Voltage Rating
63V
DC Rated Voltage
63V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM1J121MHD6TO Datasheet
Download the complete datasheet for Nichicon UPM1J121MHD6TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

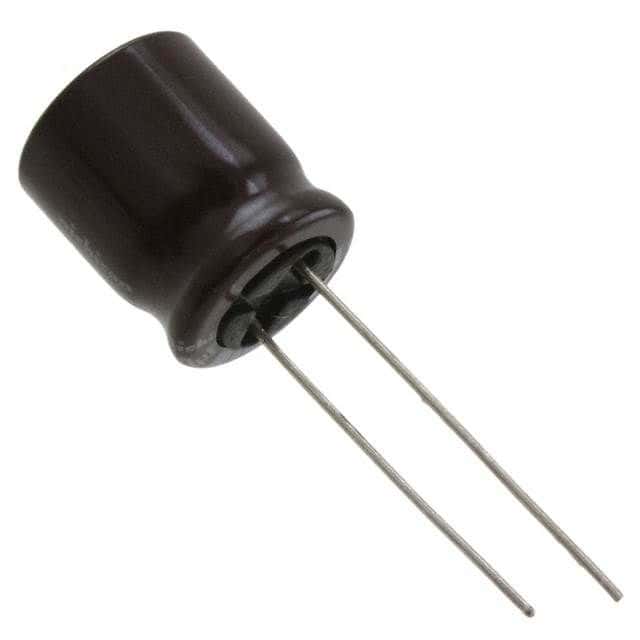

Product Images
