Nichicon
UPM2A221MHD6TN
Cap Aluminum Lytic 220uF 100V 20% (16 X 25mm) Radial 7.5mm 854mA 5000h 105°C Ammo
PackageRadial
Capacitance220uF
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM2A221MHD6TN technical specifications.
General
Capacitance
220uF
Package/Case
Radial
Diameter
16mm
Height
25mm
Height - Seated (Max)
1.063inch
Impedance
93mR
Lead Pitch
0.295inch
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
1
Packaging
Cut Tape
Radiation Hardening
No
Ripple Current
854mA
RoHS Compliant
Yes
Series
PM
Termination
Radial
Tolerance
20%
Voltage Rating
100V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM2A221MHD6TN Datasheet
Download the complete datasheet for Nichicon UPM2A221MHD6TN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

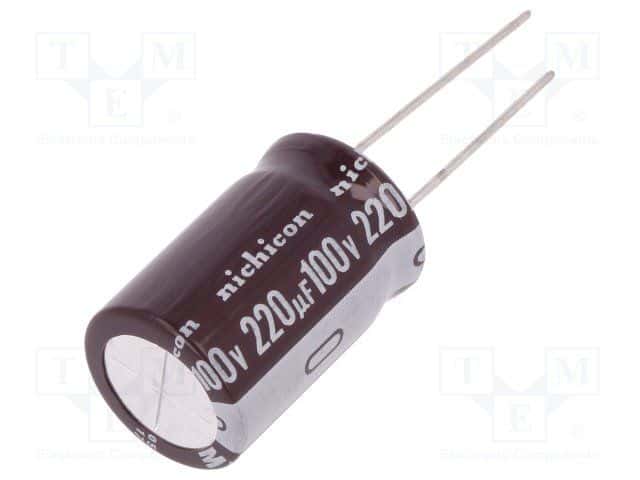

Product Images
