Aluminum electrolytic capacitor with 390µF capacitance and 100V voltage rating. Features a 20% tolerance, 1.24A ripple current, and 62mΩ impedance. Designed for through-hole mounting with a 7.5mm lead pitch and radial termination. Operates from -55°C to 105°C with a 5000-hour life expectancy at rated conditions.
PackageRadial
Capacitance390uF
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM2A391MHD6 technical specifications.
General
Capacitance
390uF
Package/Case
Radial
Diameter
18mm
Dissipation Factor
0.08%
Features
General Purpose
Height
31.5mm
Height - Seated (Max)
1.319inch
Impedance
62mR
Lead Pitch
7.5mm
Leakage Current
1.17mA
Length
31.5mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Ripple Current
1.24A
RoHS Compliant
Yes
Series
PM
Termination
Radial
Tolerance
20%
Voltage Rating
100V
DC Rated Voltage
100V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM2A391MHD6 Datasheet
Download the complete datasheet for Nichicon UPM2A391MHD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

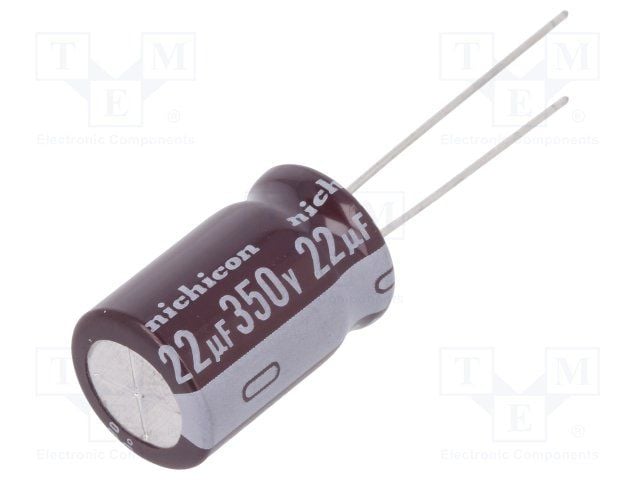

Product Images
