PackageRadial
Capacitance10uF
Voltage Rating200V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPM2D100MPD technical specifications.
General
Capacitance
10uF
Package/Case
Radial
Diameter
10mm
Height
20mm
Height - Seated (Max)
0.866inch
Lead Pitch
5mm
Leakage Current
180uA
Length
20mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
95mA
RoHS Compliant
Yes
Series
PM
Termination
Radial
Tolerance
20%
Voltage Rating
200V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPM2D100MPD Datasheet
Download the complete datasheet for Nichicon UPM2D100MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

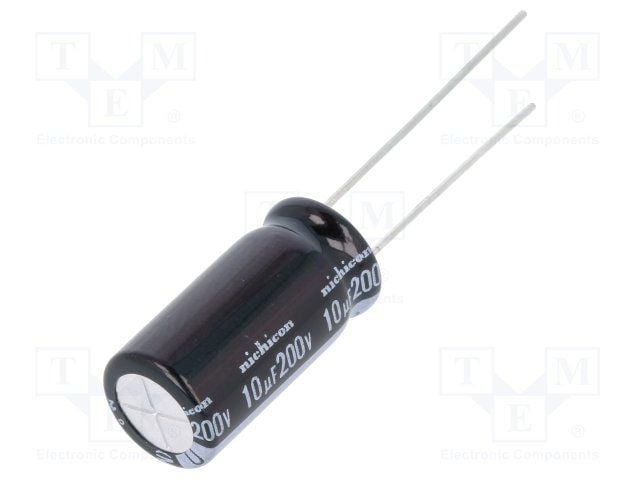

Product Images
