Nichicon
UPS1C152MHD
Cap Aluminum Lytic 1500uF 16V 20% (12.5 X 20mm) Radial 5mm 1250mA 3000h 105°C Bulk
PackageRadial
Capacitance1.5mF
Voltage Rating16V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPS1C152MHD technical specifications.
General
Capacitance
1.5mF
Package/Case
Radial
Diameter
12.5mm
Height
20mm
Height - Seated (Max)
0.866inch
Impedance
75mR
Lead Pitch
5mm
Leakage Current
720uA
Length
20mm
Life (Hours)
3000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Ripple Current
1.25A
RoHS Compliant
Yes
Series
PS
Termination
Radial
Tolerance
20%
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPS1C152MHD Datasheet
Download the complete datasheet for Nichicon UPS1C152MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

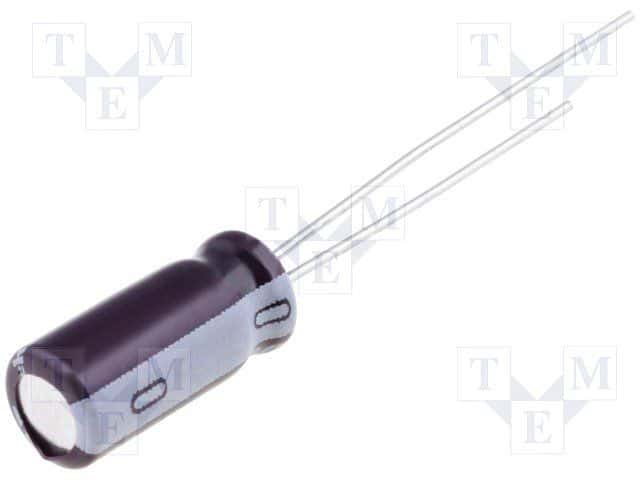

Product Images
