Aluminum electrolytic capacitor with 4700µF capacitance and 16V DC rated voltage. Features 20% tolerance, 2.35A ripple current, and a low impedance of 33mR. Designed for through-hole PCB mounting with a 7.5mm lead pitch and 0.8mm lead diameter. Operates from -55°C to 105°C with a 3000-hour life expectancy at rated conditions. Dimensions are 16mm diameter by 31.5mm height.
PackageRadial
Voltage16V
Capacitance4.7mF
Voltage Rating16V
Quick Jump:
Technical Specifications
Nichicon UPS1C472MHD technical specifications.
General
Capacitance
4.7mF
Package/Case
Radial
Construction
RADIAL
Diameter
16mm
Dielectric Material
Aluminium
Dissipation Factor
0.16%
Features
General Purpose
Height
31.5mm
Height - Seated (Max)
1.319inch
Impedance
33mR
Lead Diameter
0.8mm
Lead Pitch
7.5mm
Leakage Current
2.256mA
Length
31.5mm
Life (Hours)
3000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
50
Packaging
Bulk
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
2.35A
Ripple Current (AC)
2.35A
RoHS Compliant
Yes
Series
PS
Termination
Radial
Tolerance
20%
Voltage
16V
Voltage Rating
16V
Voltage Rating (AC)
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPS1C472MHD Datasheet
Download the complete datasheet for Nichicon UPS1C472MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

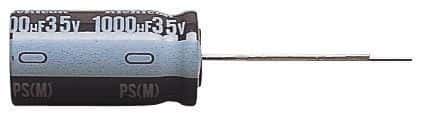

Product Images
