This is a radial aluminum electrolytic capacitor with a capacitance of 150uF, a voltage rating of 63V, and a tolerance of 20%. It has a diameter of 10mm and a height of 16mm, with a lead pitch of 5mm. The capacitor is designed for through-hole mounting and has a maximum operating temperature of 105°C and a minimum operating temperature of -55°C. It is RoHS compliant and available in bulk packaging.
PackageRadial
Capacitance150uF
Voltage Rating63V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPS1J151MPD technical specifications.
General
| Capacitance | 150uF |
| Package/Case | Radial |
| Diameter | 10mm |
| Height | 16mm |
| Impedance | 250mR |
| Lead Pitch | 5mm |
| Leakage Current | 283.5uA |
| Length | 16mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 440mA |
| RoHS Compliant | Yes |
| Series | UPS |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPS1J151MPD Datasheet
Download the complete datasheet for Nichicon UPS1J151MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

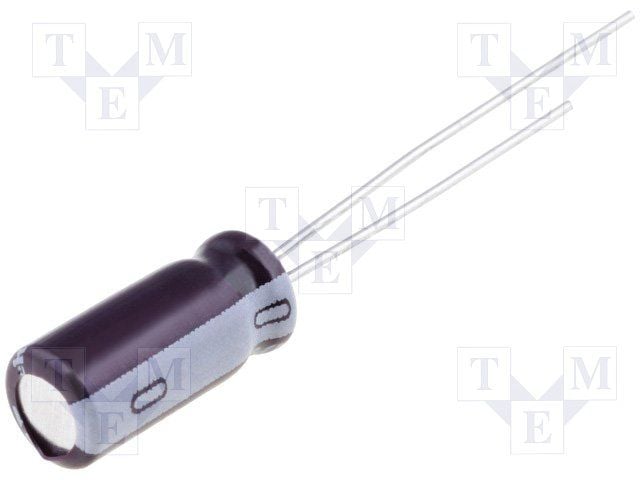

Product Images
