Nichicon
UPS2A331MHD1TN
Cap Aluminum Lytic 330uF 100V 20% (16 X 25mm) Radial 7.5mm 1080mA 3000h 105°C Ammo
PackageRadial
Capacitance330uF
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPS2A331MHD1TN technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Height - Seated (Max)
1.063inch
Impedance
90mR
Lead Pitch
0.295inch
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
1
Packaging
Cut Tape
Ripple Current
1.08A
RoHS Compliant
Yes
Series
PS
Tolerance
20%
Voltage Rating
100V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPS2A331MHD1TN Datasheet
Download the complete datasheet for Nichicon UPS2A331MHD1TN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

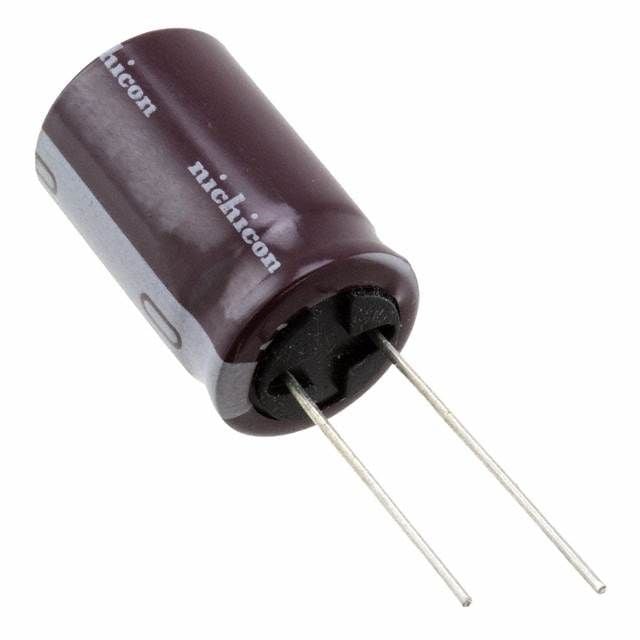

Product Images
