Nichicon
UPT2P181MHD
Cap Aluminum Lytic 180uF 220V 20% (16 X 31.5mm) Radial 7.5mm 670mA 5000h 105°C Bulk
PackageRadial
Capacitance180uF
Voltage Rating220V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPT2P181MHD technical specifications.
General
Capacitance
180uF
Package/Case
Radial
Features
General Purpose
Height - Seated (Max)
1.299inch
Lead Pitch
0.295inch
Leakage Current
2.386mA
Length
31.5mm
Max Operating Temperature
105°C
Min Operating Temperature
-25°C
Mount
Through Hole
Package Quantity
50
Packaging
Bulk
Ripple Current
670mA
RoHS Compliant
Yes
Series
PT
Termination
Radial
Tolerance
20%
Voltage Rating
220V
DC Rated Voltage
220V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPT2P181MHD Datasheet
Download the complete datasheet for Nichicon UPT2P181MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

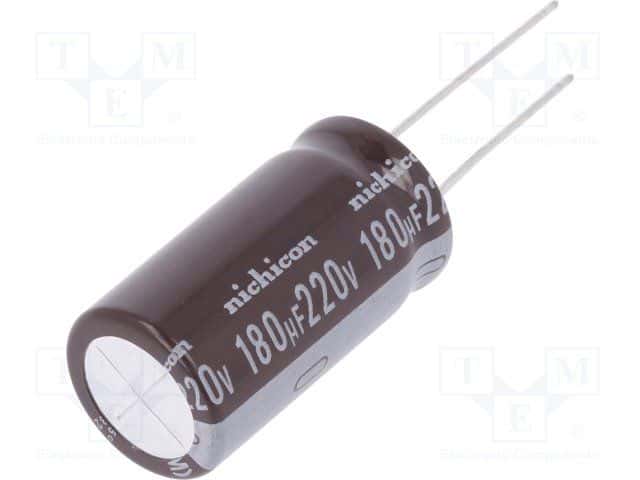

Product Images
