Nichicon
UPT2P221MHD
Cap Aluminum Lytic 220uF 220V 20% (16 X 35.5mm) Radial 7.5mm 770mA 5000h 105°C Bulk
PackageRadial
Capacitance220uF
Voltage Rating220V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPT2P221MHD technical specifications.
General
Capacitance
220uF
Package/Case
Radial
Features
General Purpose
Height - Seated (Max)
1.457inch
Lead Pitch
0.295inch
Leakage Current
2.914mA
Length
35.5mm
Max Operating Temperature
105°C
Min Operating Temperature
-25°C
Mount
Through Hole
Package Quantity
50
Packaging
Bulk
Ripple Current
770mA
RoHS Compliant
Yes
Series
PT
Termination
Radial
Tolerance
20%
Voltage Rating
220V
DC Rated Voltage
220V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPT2P221MHD Datasheet
Download the complete datasheet for Nichicon UPT2P221MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

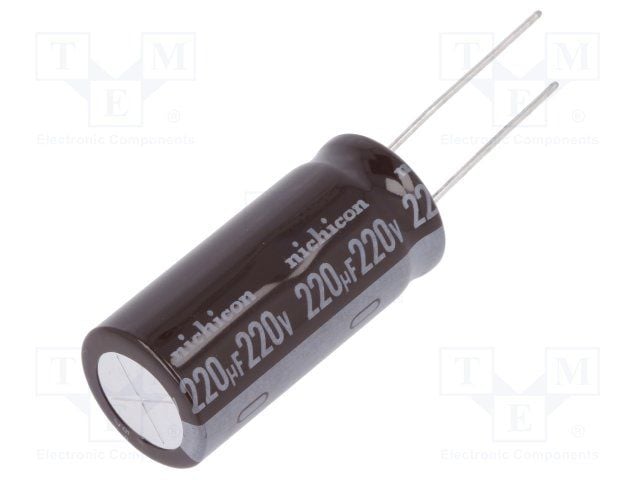

Product Images
