Aluminum electrolytic capacitor with 220µF capacitance and 220V DC rated voltage. Features a 20% tolerance, 770mA ripple current, and a maximum operating temperature of 105°C. Radial package with 7.5mm lead pitch, measuring 18mm in diameter and 31.5mm in height. Designed for general purpose applications with a 5000-hour life expectancy.
PackageRadial
Capacitance220uF
Voltage Rating220V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPT2P221MHD6 technical specifications.
General
Capacitance
220uF
Package/Case
Radial
Diameter
18mm
Dissipation Factor
0.12%
Features
General Purpose
Height
31.5mm
Height - Seated (Max)
1.299inch
Lead Pitch
7.5mm
Leakage Current
2.914mA
Length
31.5mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-25°C
Mount
Through Hole
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Ripple Current
770mA
RoHS Compliant
Yes
Series
PT
Termination
Radial
Tolerance
20%
Voltage Rating
220V
DC Rated Voltage
220V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPT2P221MHD6 Datasheet
Download the complete datasheet for Nichicon UPT2P221MHD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

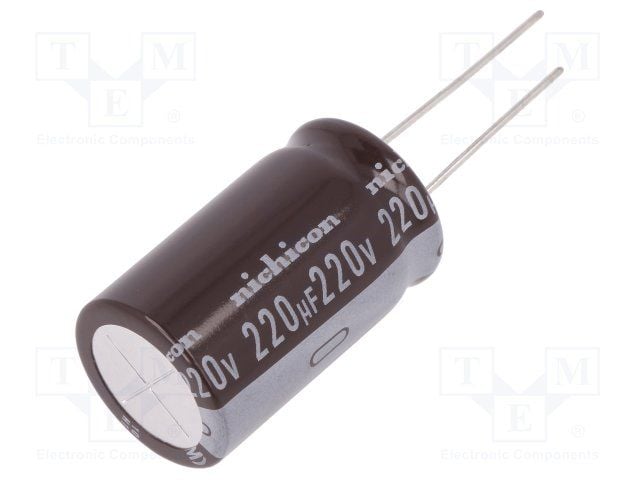

Product Images
