Nichicon
UPT2P561MRD6
Cap Aluminum Lytic 560uF 220V 20% (25 X 40mm) Radial 12.5mm 1500mA 5000h 105°C Bulk
PackageRadial
Capacitance560uF
Voltage Rating220V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPT2P561MRD6 technical specifications.
General
Capacitance
560uF
Package/Case
Radial
Diameter
22mm
Features
General Purpose
Height
50mm
Height - Seated (Max)
1.654inch
Lead Pitch
0.492inch
Leakage Current
7.402mA
Length
40mm
Max Operating Temperature
105°C
Min Operating Temperature
-25°C
Mount
Through Hole
Package Quantity
180
Packaging
Bulk
Ripple Current
1.5A
RoHS Compliant
Yes
Series
PT
Termination
Radial
Tolerance
20%
Voltage Rating
220V
DC Rated Voltage
220V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPT2P561MRD6 Datasheet
Download the complete datasheet for Nichicon UPT2P561MRD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

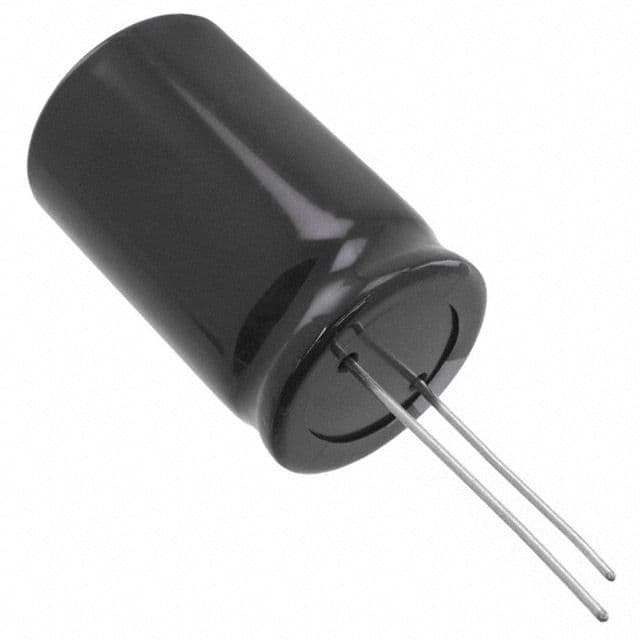

Product Images
