PackageRadial
Capacitance68uF
Voltage Rating220V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPT2P680MHD technical specifications.
General
Capacitance
68uF
Package/Case
Radial
Lead Pitch
5mm
Leakage Current
907.6uA
Length
25mm
Max Operating Temperature
105°C
Min Operating Temperature
-25°C
Mount
Through Hole
Package Quantity
100
Packaging
Bulk
Ripple Current
340mA
RoHS Compliant
Yes
Series
UPT
Termination
Radial
Tolerance
20%
Voltage Rating
220V
DC Rated Voltage
220V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPT2P680MHD Datasheet
Download the complete datasheet for Nichicon UPT2P680MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

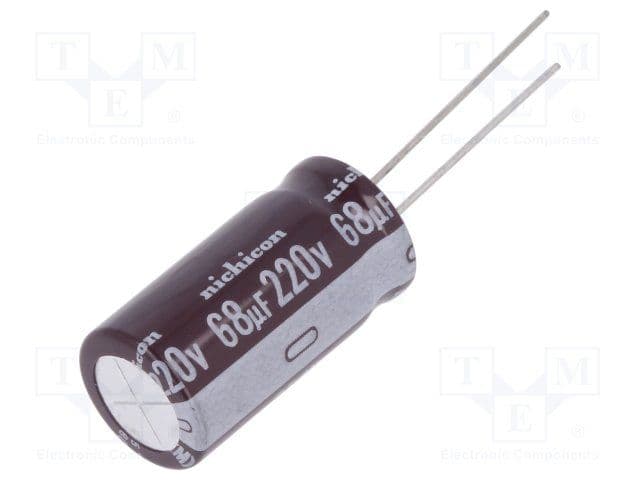

Product Images
