Nichicon
UPT2W330MHD
Cap Aluminum Lytic 33uF 450V 20% (12.5 X 35.5mm) Radial 5mm 280mA 5000h 105°C Bulk
PackageRadial
Capacitance33uF
Voltage Rating450V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPT2W330MHD technical specifications.
General
Capacitance
33uF
Package/Case
Radial
Dissipation Factor
0.2%
Features
General Purpose
Height - Seated (Max)
1.457inch
Lead Pitch
0.197inch
Leakage Current
901uA
Length
35.5mm
Max Operating Temperature
105°C
Min Operating Temperature
-25°C
Mount
Through Hole
Package Quantity
100
Packaging
Bulk
Ripple Current
280mA
RoHS Compliant
Yes
Series
PT
Termination
Radial
Tolerance
20%
Voltage Rating
450V
DC Rated Voltage
450V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPT2W330MHD Datasheet
Download the complete datasheet for Nichicon UPT2W330MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

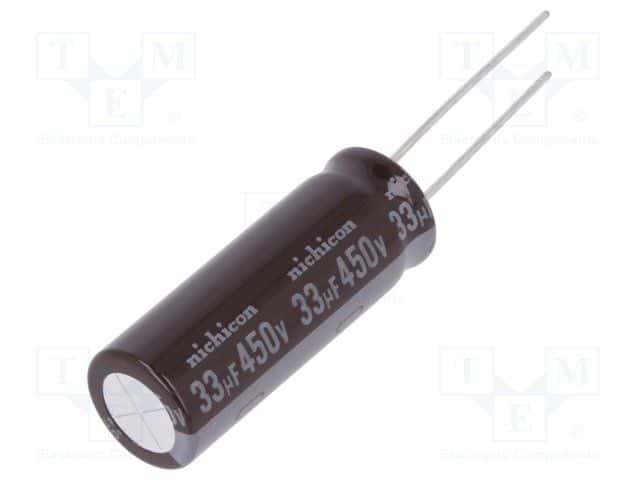

Product Images
