Nichicon
UPV1E820MGD1TD
Cap Aluminum Lytic 82uF 25V 20% (6.3 X 11mm) Radial 2.5mm 285mA 5000h 105°C Ammo
PackageRadial
Capacitance82uF
Voltage Rating25V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPV1E820MGD1TD technical specifications.
General
Capacitance
82uF
Package/Case
Radial
Diameter
6.3mm
Dielectric Material
Aluminium
Height
11mm
Impedance
510mR
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Packaging
Cut Tape
RoHS Compliant
Yes
Series
UPV
Tolerance
20%
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPV1E820MGD1TD Datasheet
Download the complete datasheet for Nichicon UPV1E820MGD1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

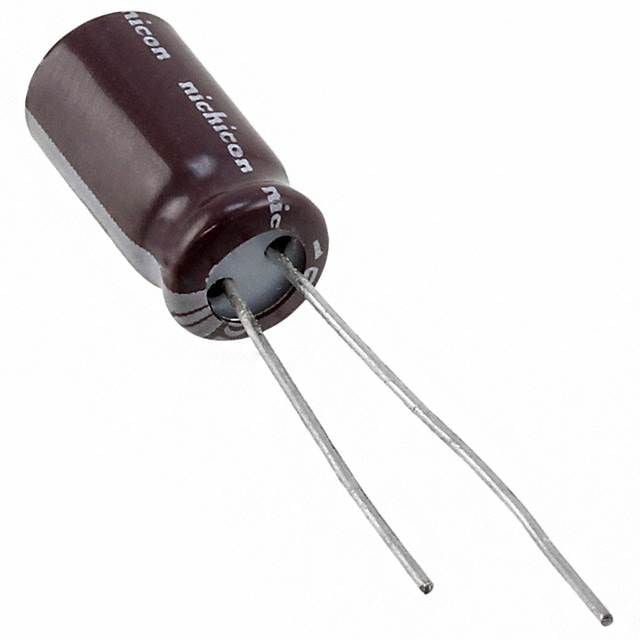

Product Images
