Nichicon
UPV1H150MFD1TD
Cap Aluminum Lytic 15uF 50V 20% (5 X 11mm) Radial 2.5mm 145mA 5000h 105°C Ammo
PackageRadial
Capacitance15uF
Voltage Rating50V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPV1H150MFD1TD technical specifications.
General
Capacitance
15uF
Package/Case
Radial
Impedance
1.3R
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Packaging
Cut Tape
RoHS Compliant
Yes
Series
UPV
Tolerance
20%
Voltage Rating
50V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPV1H150MFD1TD Datasheet
Download the complete datasheet for Nichicon UPV1H150MFD1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

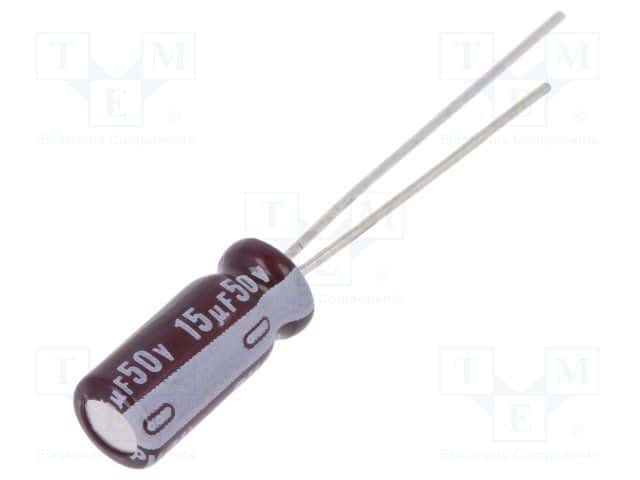

Product Images
