Nichicon
UPW1A682MHD6
Cap Aluminum Lytic 6800uF 10V 20% (18 X 25mm) Radial 7.5mm 2740mA 8000h 105°C Automotive Bulk
PackageRadial
Capacitance6.8mF
Voltage Rating10V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPW1A682MHD6 technical specifications.
General
Capacitance
6.8mF
Package/Case
Radial
Diameter
18mm
Dissipation Factor
0.19%
Height
25mm
Impedance
20mR
Lead Free
Lead Free
Lead Pitch
7.5mm
Leakage Current
2.04mA
Length
25mm
Life (Hours)
8000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
50
Radiation Hardening
No
Ripple Current
2.74A
RoHS Compliant
Yes
Series
UPW
Termination
Radial
Tolerance
20%
Voltage Rating
10V
DC Rated Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPW1A682MHD6 Datasheet
Download the complete datasheet for Nichicon UPW1A682MHD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

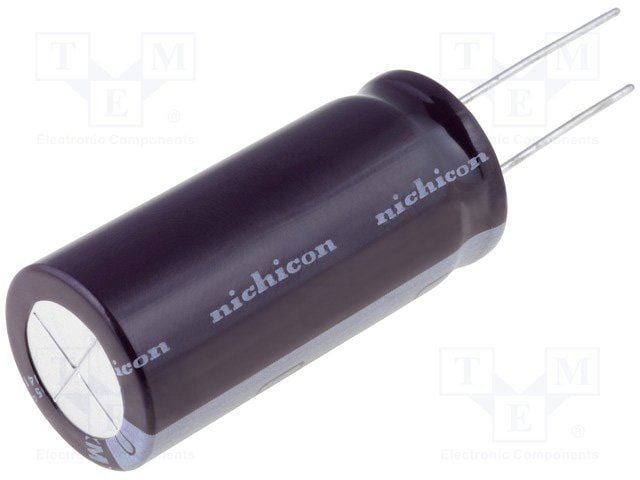

Product Images
