Nichicon
UPW1C100MDD1TD
Cap Aluminum Lytic 10uF 16V 20% (5 X 11mm) Radial 2.5mm 180mA 2000h 105°C Automotive Ammo
PackageRadial
Capacitance10uF
Voltage Rating16V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPW1C100MDD1TD technical specifications.
General
Capacitance
10uF
Package/Case
Radial
Diameter
5mm
Dielectric Material
Aluminium
ESR (Equivalent Series Resistance)
1.2R
Height
11mm
Impedance
600mR
Lead Pitch
2mm
Length
11mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
2000
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
UPW
Termination
Radial
Tolerance
20%
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPW1C100MDD1TD Datasheet
Download the complete datasheet for Nichicon UPW1C100MDD1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

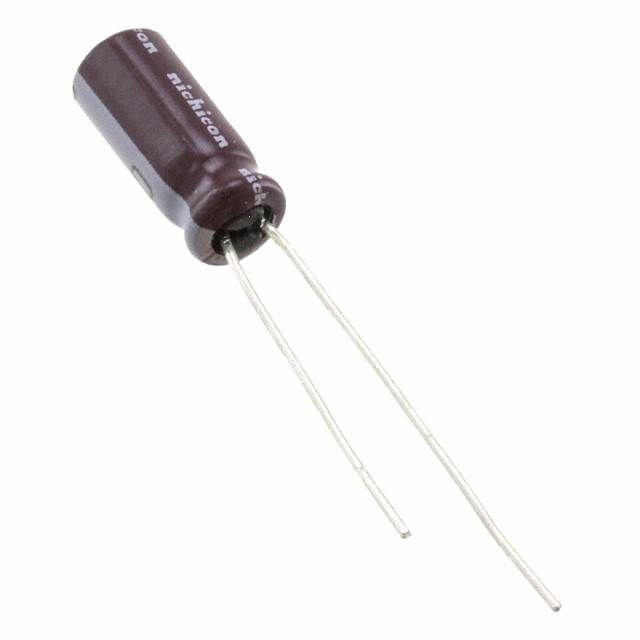

Product Images
