Nichicon
UPW1C101MED1TA
Cap Aluminum Lytic 100uF 16V 20% (6.3 X 11mm) Radial 5mm 290mA 2000h 105°C Automotive Ammo
PackageRadial
Capacitance100uF
Voltage Rating16V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPW1C101MED1TA technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Height - Seated (Max)
0.492inch
Impedance
250mR
Lead Free
Lead Free
Lead Pitch
0.098inch
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
4000
Packaging
Tape and Reel
Ripple Current
188.5mA
RoHS Compliant
Yes
Series
UPW
Tolerance
20%
Voltage Rating
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPW1C101MED1TA Datasheet
Download the complete datasheet for Nichicon UPW1C101MED1TA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

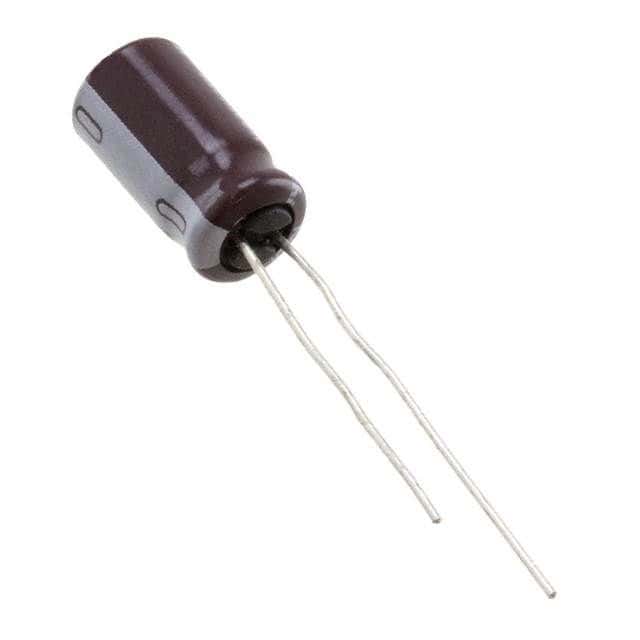

Product Images
