Nichicon
UPW1C122MPD1TD
Cap Aluminum Lytic 1200uF 16V 20% (10 X 25mm) Radial 5mm 1440mA 5000h 105°C Automotive Ammo
PackageRadial
Capacitance1.2mF
Voltage Rating16V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPW1C122MPD1TD technical specifications.
General
Capacitance
1.2mF
Package/Case
Radial
Diameter
10mm
Dielectric Material
Aluminium
ESR (Equivalent Series Resistance)
90mR
Height
20mm
Height - Seated (Max)
1.063inch
Impedance
45mR
Lead Pitch
0.197inch
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
Ripple Current
1.224A
RoHS Compliant
Yes
Series
PW
Termination
Radial
Tolerance
20%
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPW1C122MPD1TD Datasheet
Download the complete datasheet for Nichicon UPW1C122MPD1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

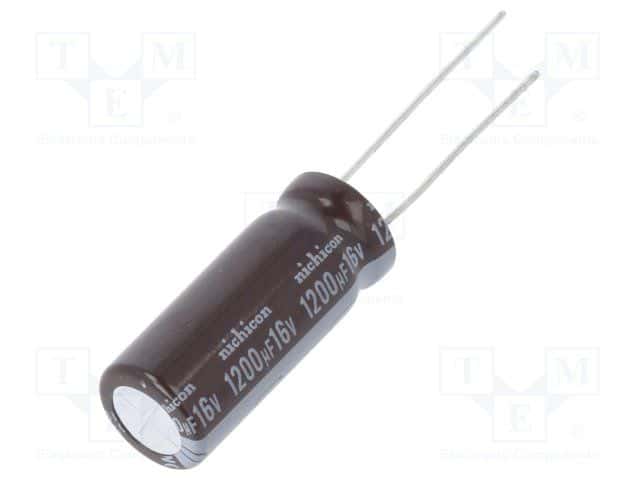

Product Images
