Nichicon
UPW1C221MPD1TD
Cap Aluminum Lytic 220uF 16V 20% (8 X 11.5mm) Radial 3.5mm 555mA 3000h 105°C Automotive Ammo
PackageRadial
Capacitance220uF
Voltage Rating16V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPW1C221MPD1TD technical specifications.
General
Capacitance
220uF
Package/Case
Radial
Diameter
8mm
Dielectric Material
Aluminium
ESR (Equivalent Series Resistance)
234mR
Height
11.5mm
Height - Seated (Max)
0.512inch
Impedance
117mR
Lead Pitch
3.5mm
Length
11.5mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
1000
Packaging
Tape and Reel
Reach SVHC Compliant
No
Ripple Current
360.8mA
RoHS Compliant
Yes
Series
UPW
Termination
Radial
Tolerance
20%
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPW1C221MPD1TD Datasheet
Download the complete datasheet for Nichicon UPW1C221MPD1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

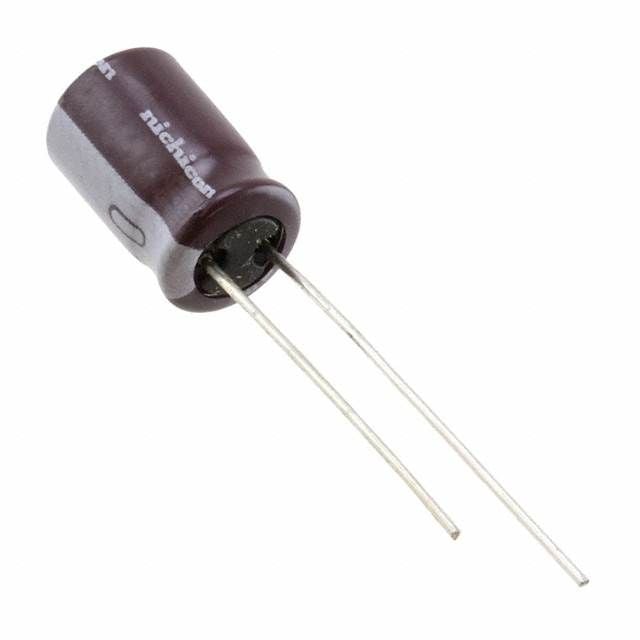

Product Images
