Aluminum electrolytic capacitor with 4700µF capacitance and 25V DC rated voltage. Features 20% tolerance, 30mΩ ESR, and 15mΩ impedance. Rated for 3.68A ripple current and 8000 hours at 105°C. Through-hole mounting with a 7.5mm lead pitch and 18mm diameter.
PackageRadial
Voltage25V
Capacitance4.7mF
Voltage Rating25V
Quick Jump:
Technical Specifications
Nichicon UPW1E472MHD technical specifications.
General
Capacitance
4.7mF
Package/Case
Radial
Construction
RADIAL
Diameter
18mm
Dielectric Material
Aluminium
Dissipation Factor
0.14%
ESR (Equivalent Series Resistance)
30mR
Height
35.5mm
Height - Seated (Max)
1.398inch
Impedance
15mR
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
7.5mm
Leakage Current
3.525mA
Length
35.5mm
Life (Hours)
8000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Ripple Current
3.68A
RoHS Compliant
Yes
Series
PW
Termination
Radial
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPW1E472MHD Datasheet
Download the complete datasheet for Nichicon UPW1E472MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

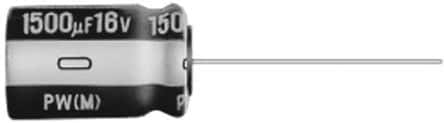

Product Images
