Nichicon
UPW1H220MDD1TD
Cap Aluminum Lytic 22uF 50V 20% (5 X 11mm) Radial 2.5mm 170mA 2000h 105°C Automotive Ammo
PackageRadial
Capacitance22uF
Voltage Rating50V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPW1H220MDD1TD technical specifications.
General
Capacitance
22uF
Package/Case
Radial
Diameter
5mm
Dielectric Material
Aluminium
ESR (Equivalent Series Resistance)
2.4R
Height
11mm
Impedance
1.2R
Lead Pitch
2mm
Length
11mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
2000
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
UPW
Termination
Radial
Tolerance
20%
Voltage Rating
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPW1H220MDD1TD Datasheet
Download the complete datasheet for Nichicon UPW1H220MDD1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

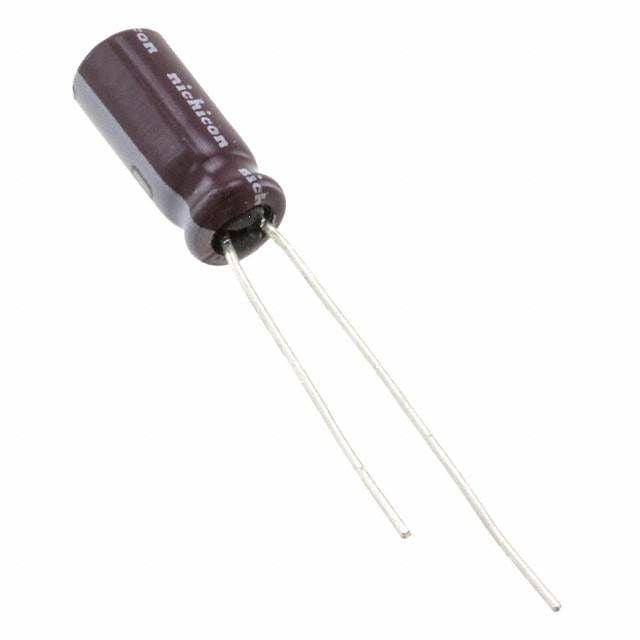

Product Images
