Aluminum electrolytic capacitor, 47µF capacitance, 63V DC rated voltage, 20% tolerance. Features 684mΩ ESR, 342mΩ impedance, and 405mA ripple current. Operates from -55°C to 105°C with a 3000-hour life at rated conditions. Radial package with 3.5mm lead pitch, 8mm diameter, and 11.5mm height, suitable for through-hole PCB mounting. Lead-free and RoHS compliant.
PackageRadial
Voltage63V
Capacitance47uF
Voltage Rating63V
Quick Jump:
Technical Specifications
Nichicon UPW1J470MPD technical specifications.
General
Capacitance
47uF
Package/Case
Radial
Construction
RADIAL
Diameter
8mm
Dielectric Material
Aluminium
Dissipation Factor
0.09%
ESR (Equivalent Series Resistance)
684mR
Height
11.5mm
Impedance
342mR
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
3.5mm
Leakage Current
88.83uA
Length
11.5mm
Life (Hours)
3000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
405mA
RoHS Compliant
Yes
Series
PW
Termination
Radial
Tolerance
20%
Voltage
63V
Voltage Rating
63V
DC Rated Voltage
63V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPW1J470MPD Datasheet
Download the complete datasheet for Nichicon UPW1J470MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

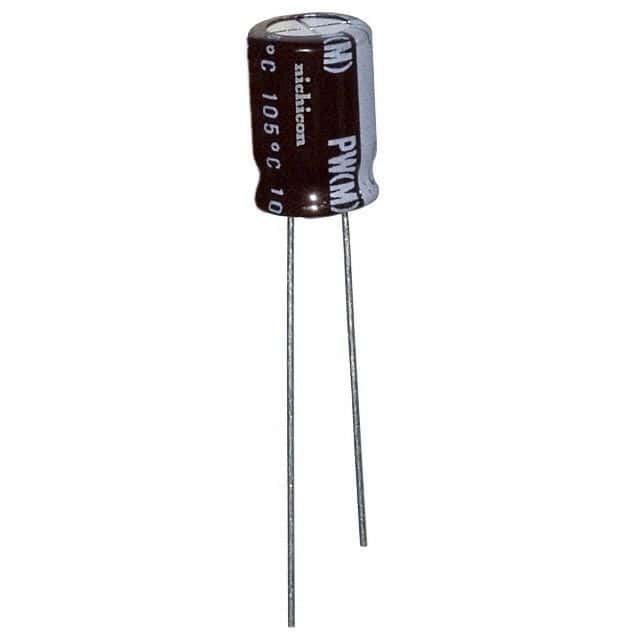

Product Images
