680µF, 35V radial aluminum electrolytic capacitor with 20% tolerance. Features 70mΩ ESR, 38mΩ impedance, and 1.66A ripple current. Operates from -55°C to 105°C with a 7000-hour life rating. Through-hole mounting with a 5mm lead pitch and 12.5mm diameter. RoHS compliant and lead-free.
PackageRadial
Voltage35V
Capacitance680uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon UPW1V681MHD technical specifications.
General
Capacitance
680uF
Package/Case
Radial
Construction
RADIAL
Diameter
12.5mm
Dielectric Material
Aluminium
Dissipation Factor
0.12%
ESR (Equivalent Series Resistance)
70mR
Height
20mm
Height - Seated (Max)
0.787inch
Impedance
38mR
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
5mm
Leakage Current
714uA
Length
20mm
Life (Hours)
7000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Polarity
Polar
Radiation Hardening
No
Ripple Current
1.66A
Ripple Current (AC)
1.66A
RoHS Compliant
Yes
Series
PW
Termination
Radial
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPW1V681MHD Datasheet
Download the complete datasheet for Nichicon UPW1V681MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

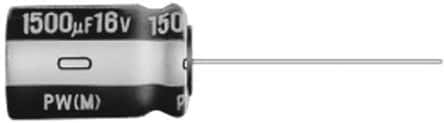

Product Images
