Aluminum electrolytic capacitor with 22µF capacitance and 100V DC rated voltage. Features 20% tolerance, 1.36Ω ESR, and 680mΩ impedance. Designed for through-hole PCB mounting with a 3.5mm lead pitch and 8mm diameter. Operates from -55°C to 105°C with a 3000-hour life at rated conditions, handling 230mA ripple current. RoHS compliant and lead-free.
PackageRadial
Voltage100V
Capacitance22uF
Voltage Rating100V
Quick Jump:
Technical Specifications
Nichicon UPW2A220MPD technical specifications.
General
Capacitance
22uF
Package/Case
Radial
Construction
RADIAL
Diameter
8mm
Dielectric Material
Aluminium
Dissipation Factor
0.08%
ESR (Equivalent Series Resistance)
1.36R
Height
11.5mm
Impedance
680mR
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
3.5mm
Lead/Base Style
Straight
Leakage Current
66uA
Length
11.5mm
Life (Hours)
3000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
230mA
Ripple Current (AC)
230mA
RoHS Compliant
Yes
Series
PW
Termination
Radial
Tolerance
20%
Voltage
100V
Voltage Rating
100V
DC Rated Voltage
100V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPW2A220MPD Datasheet
Download the complete datasheet for Nichicon UPW2A220MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

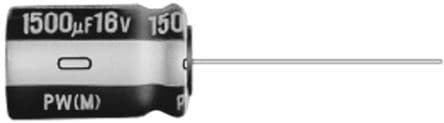

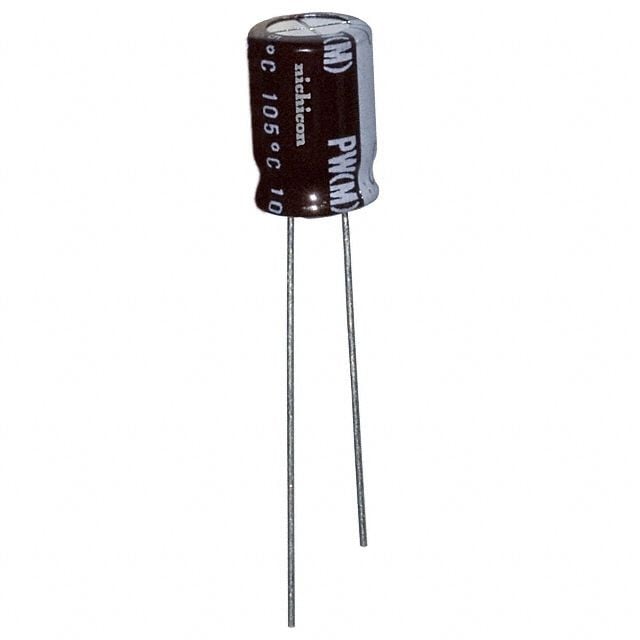

Product Images
