UPW2A220MPD1TD

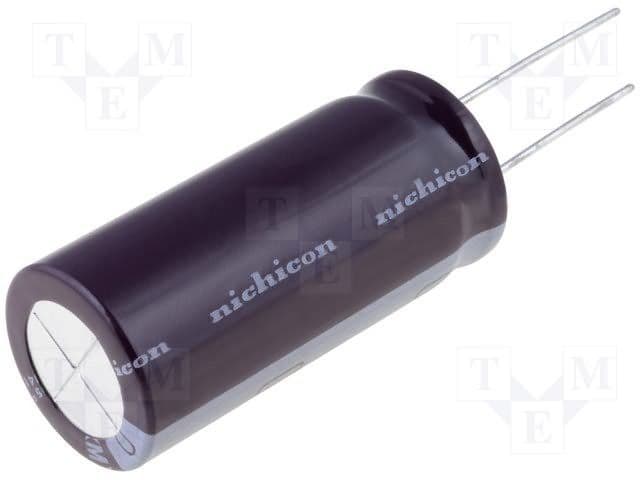

22uF 100V Aluminium Electrolytic Capacitor, 20% Tolerance, Radial Through Hole
This 22uF aluminium electrolytic capacitor has a voltage rating of 100V and a tolerance of 20%. It is available in a radial package with a diameter of 8mm and a height of 11.5mm. The capacitor is designed for through hole mounting and is suitable for use in a wide range of applications. It has a maximum operating temperature of 105°C and a minimum operating temperature of -55°C. The capacitor is RoHS compliant and is packaged in tape and reel.
PackageRadial
Capacitance22uF
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPW2A220MPD1TD technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 1.36R |
| Height | 11.5mm |
| Height - Seated (Max) | 0.512inch |
| Impedance | 680mR |
| Lead Pitch | 3.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Ripple Current | 69mA |
| RoHS Compliant | Yes |
| Series | PW |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPW2A220MPD1TD Datasheet
Download the complete datasheet for Nichicon UPW2A220MPD1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
