Radial leaded aluminum electrolytic capacitor, polarized, 330µF capacitance, 100V DC rated voltage, with a 20% tolerance. Features 180mΩ ESR, 90mΩ impedance, and 1.08A ripple current. Operates from -55°C to 105°C with a 8000-hour life rating. RoHS compliant, through-hole mount, 16mm diameter, 25mm height.
PackageRadial
Voltage100V
Capacitance330uF
Voltage Rating100V
Quick Jump:
Technical Specifications
Nichicon UPW2A331MHD technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Construction
RADIAL
Diameter
16mm
Dielectric Material
Aluminium
Dissipation Factor
0.08%
ESR (Equivalent Series Resistance)
180mR
Height
25mm
Height - Seated (Max)
0.984inch
Impedance
90mR
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
7.5mm
Leakage Current
990uA
Length
25mm
Life (Hours)
8000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Ripple Current
1.08A
RoHS Compliant
Yes
Series
PW
Termination
Radial
Tolerance
20%
Voltage
100V
Voltage Rating
100V
DC Rated Voltage
100V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPW2A331MHD Datasheet
Download the complete datasheet for Nichicon UPW2A331MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

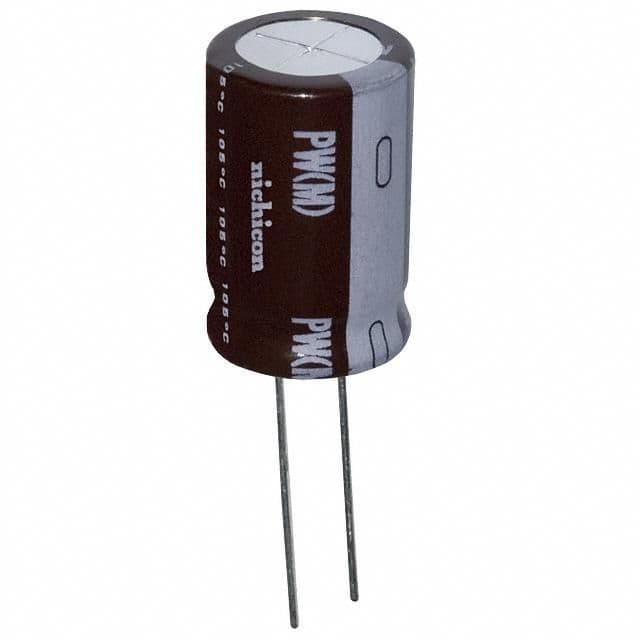

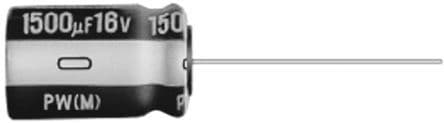

Product Images
