The Nichicon URS1E101MDD is a 100uF radial aluminum electrolytic capacitor with a 25V voltage rating. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The capacitor is lead-free and RoHS compliant, with a tolerance of 20%. It is available in bulk packaging with 200 units per package.
PackageRadial
Capacitance100uF
Voltage Rating25V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon URS1E101MDD technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Dissipation Factor | 0.16% |
| Height - Seated (Max) | 0.413inch |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.5mm |
| Length | 9mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 180mA |
| RoHS Compliant | Yes |
| Series | RS |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon URS1E101MDD Datasheet
Download the complete datasheet for Nichicon URS1E101MDD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

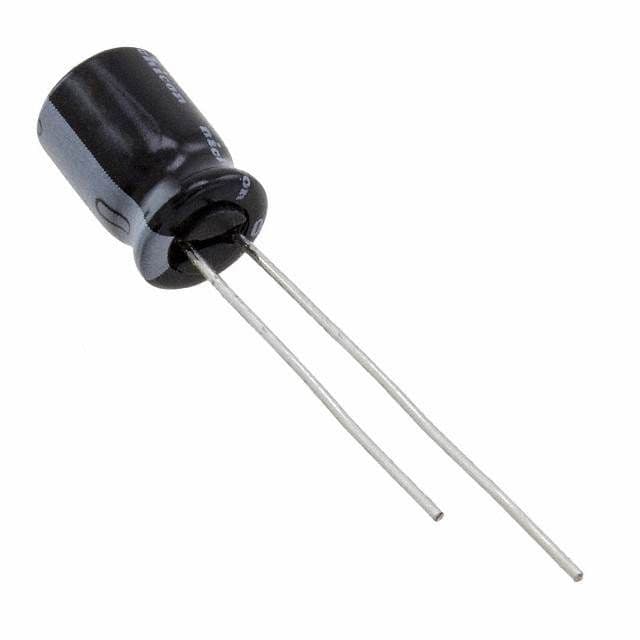

Product Images
