PackageRadial
Capacitance47uF
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon URS2A470MPD technical specifications.
General
Capacitance
47uF
Package/Case
Radial
Diameter
10mm
Height
12.5mm
Height - Seated (Max)
0.551inch
Lead Pitch
5mm
Leakage Current
141uA
Length
12.5mm
Life (Hours)
2000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
230mA
RoHS Compliant
Yes
Series
RS
Termination
Radial
Tolerance
20%
Voltage Rating
100V
DC Rated Voltage
100V
Compliance
RoHS
Compliant
Datasheet
Nichicon URS2A470MPD Datasheet
Download the complete datasheet for Nichicon URS2A470MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

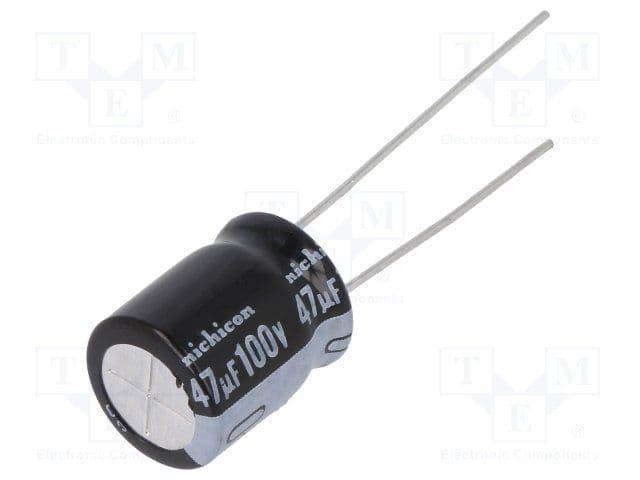

Product Images
