Technical Specifications
Nichicon URS2D470MHD technical specifications.
General
| Capacitance | 47uF |
| Package/Case | Radial |
| Diameter | 18mm |
| Height | 15mm |
| Lead Pitch | 7.5mm |
| Leakage Current | 476uA |
| Length | 15mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 420mA |
| RoHS Compliant | Yes |
| Series | URS |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon URS2D470MHD Datasheet
Download the complete datasheet for Nichicon URS2D470MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

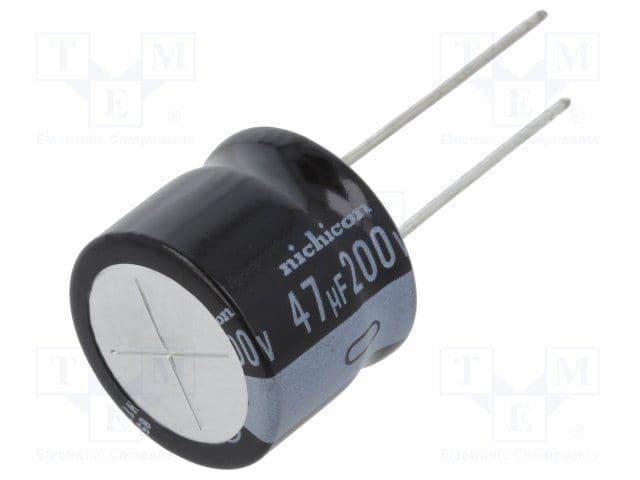

Product Images
